GeoWellCam DN.50 – DN.300
|
- Camera with rotary head (360 degree rotation)
- Object lens: wide angle, manual focus
- Light: LED
- With auxiliary light up to DN 300
- System Sensors: inside pressure, inside temperature
- Depth: up to 500 m
- Diameter: 36 mm
- Length: 225 mm
- Weight: 655 g
- Automatic cable reel with spooling system
- Video recording on notebook without delay
- Optional: compass (incl. 2 inclinometer), auxiliary light, centring of sensor unit
|

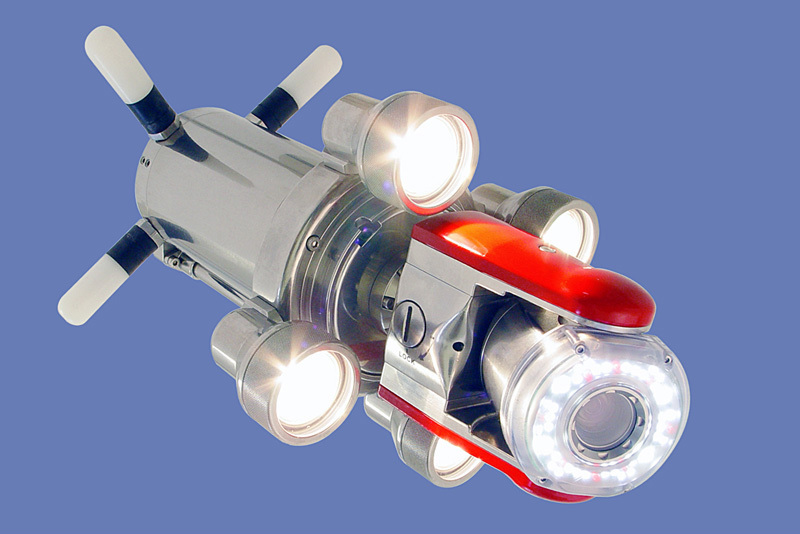

GeoWellCam DN.110 – DN.600
|
- Camera with rotary head (360 degree rotation)
- Object lens: autofocus, 10x optical zoom
- Light: LED
- System Sensors: inside pressure, inside temperature, laser measurement
- Depth: up to 500 m
- Diameter: 98 mm
- Length: 408 mm
- Weight: 6600 g
- Automatic cable reel with spooling system
- Video recording on notebook without delay
- Optional: auxiliary light, centring of sensor unit
|

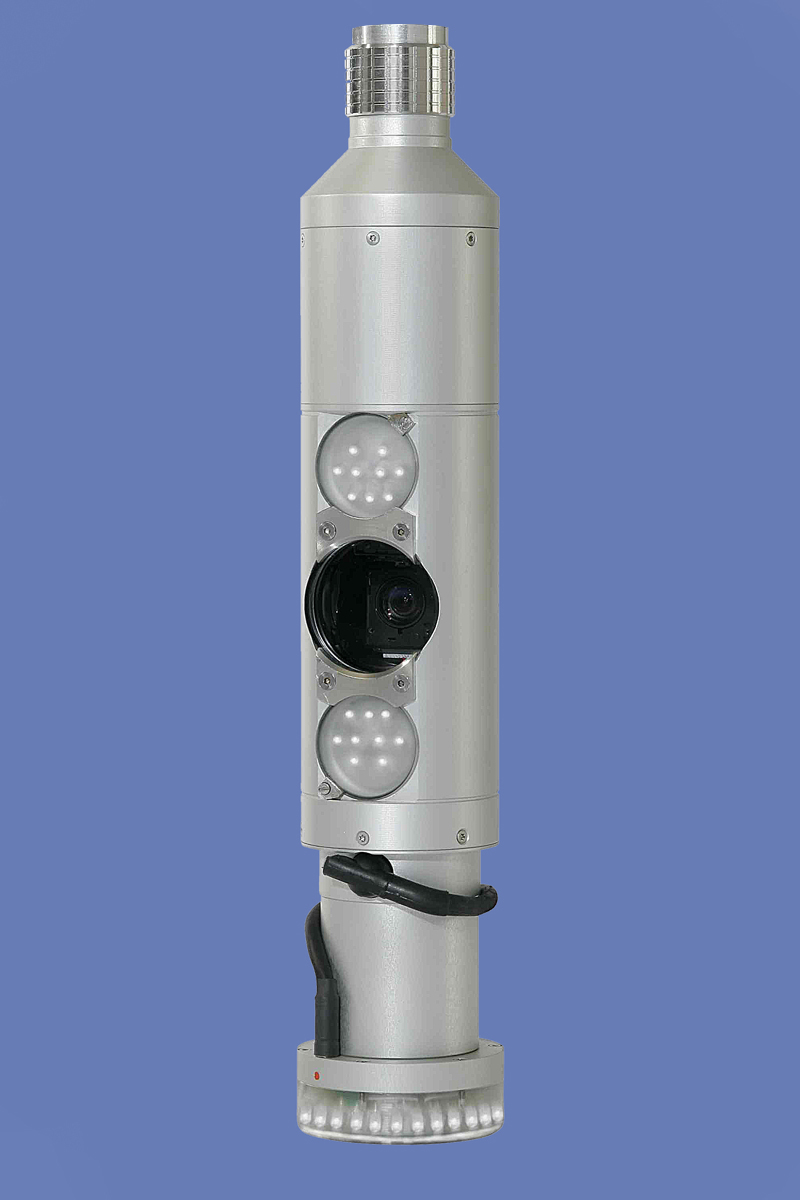

GeoWellCam DN.100 – DN.1000
 |
- two cameras (axial, radial)
- Object lens: autofocus, 10x optical zoom
- Light: LED
- With auxiliary light up to DN 1000
- Depth:Tiefe: bis 1000 m, optional 1500 m
- Diameter: 80 mm
- Automatic cable reel with spooling system
- Video recording on notebook without delay
- Optional: sensor for temperature, ph-value, density, auxiliary light
|
