Single components

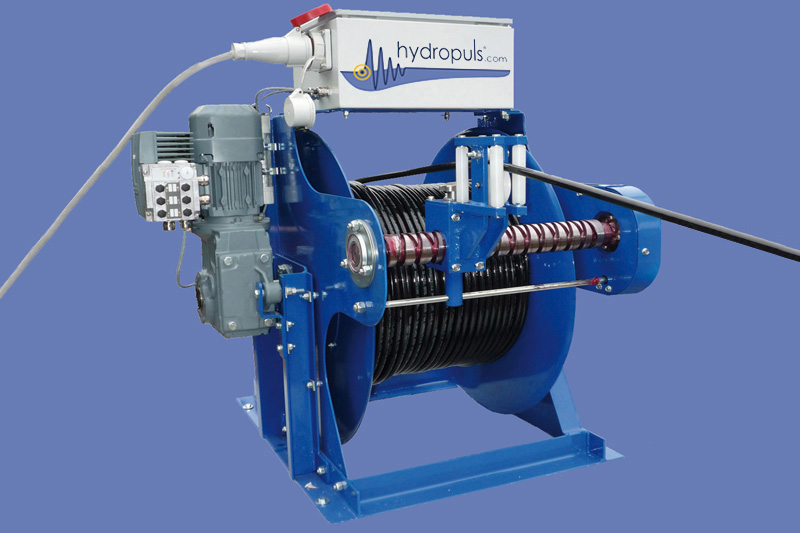

Electric hose reel

Winde-500m_8



  • high pressure hose, up to 800 m length
  • spooling system
  • programmable range of action
  • depth counter
  • Vmax 20 m/min

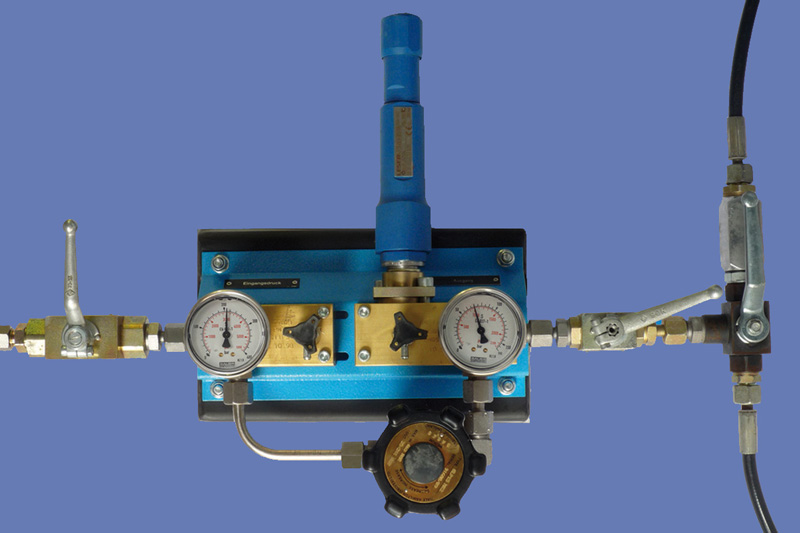

Pressure reducer

Manometer-1



  • various models
  • connects with all sizes of threads
  • stationary solution and carrying case
  • 200 bar/100 bar; 300 bar/100 bar;
  • up to 450 bar

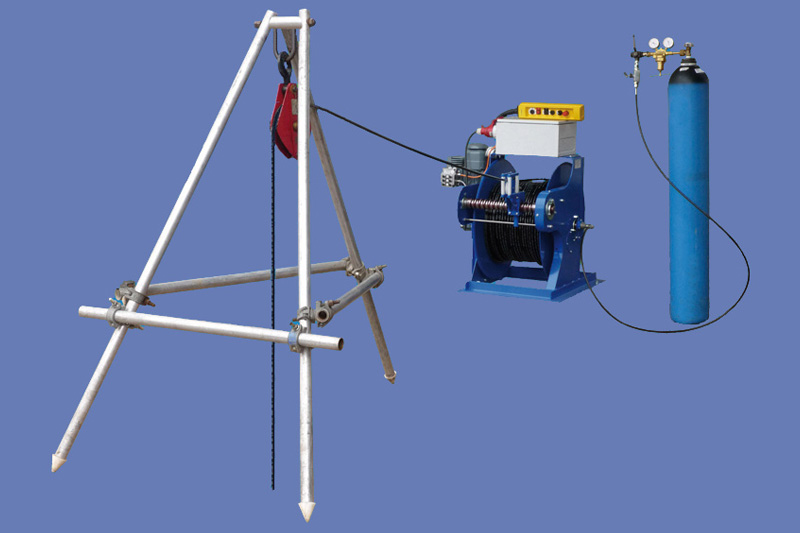

Tripod with pulley

500m Winde Zylinder Dreibock-3



  • Material: aluminium
  • max. pulley load: 2 t

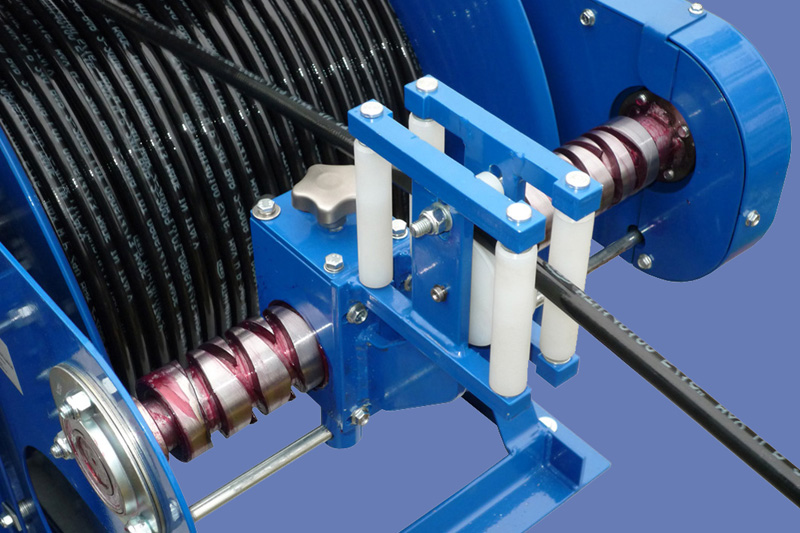

High pressure hose

Schlauch_1-6



  • OD: 10 mm
  • Pmax: 325 bar
  • OD: 14 mm
  • Pmax: 150 bar
  • acid-resisting

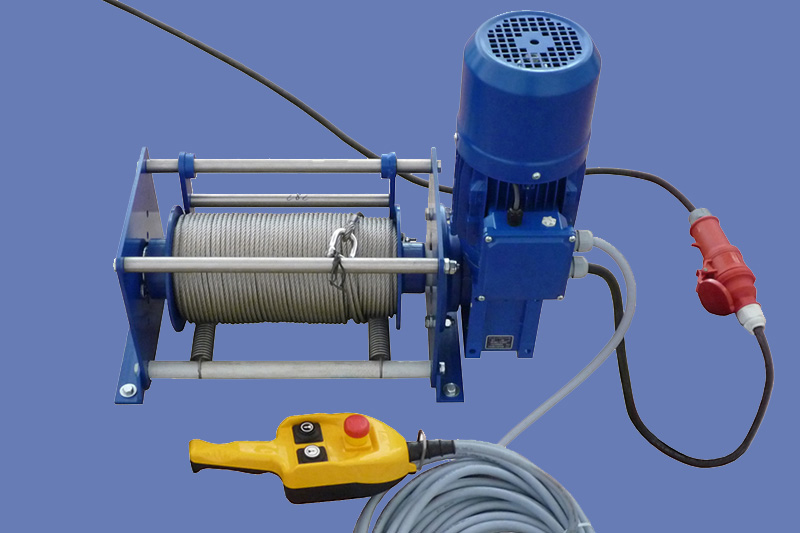

Cable winch

P1070025-Stahlseilwinde-6



  • for DN 6 – 14 mm stainless steel cable
  • length: 150 m up to max. 800 m
  • tension force: 600 kg up to max. 3000 kg
